    Windom 3,5-7-14-28 QRO

    Code: 145/CU-2 145/CU-3 Choose variant
    Windom 3,5-7-14-28 QRO
    €95 €103 from €95
    In stock In stock Choose variant
    Variant

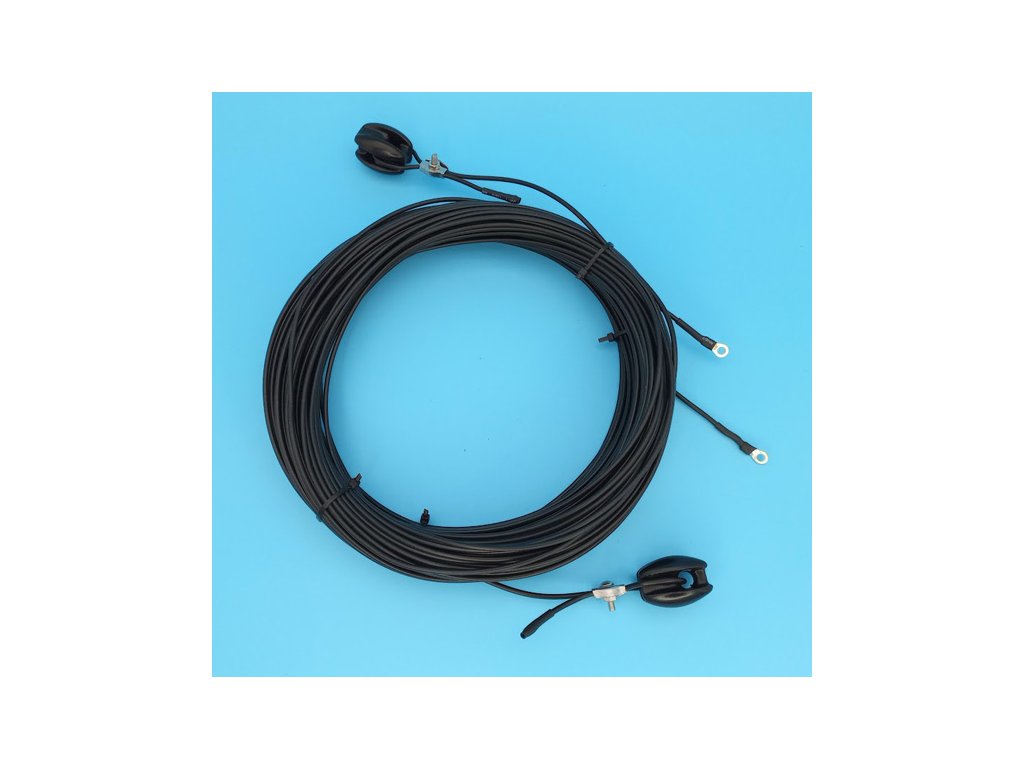

    Windom antenna (OCF, FD-4) for bands 3,5-7-14-28 MHz. Version CLASSIC QRO.

    Detailed information

    Product detailed description

    Windom antenna (FD-4) for bands 3,5-7-14-28 MHz, CLASSIC QRO version

    Mounting for hanging by unun.
    Suspension by the ends of the arms only possible with the CU-HD version.

    Specification:
    - 3.5-7-14-28 MHz bands
    - arm length approx. 14+28 m (tuning by arm length)
    - antenna wire according to variant - CU-PVC, CU-PE, CU-HD

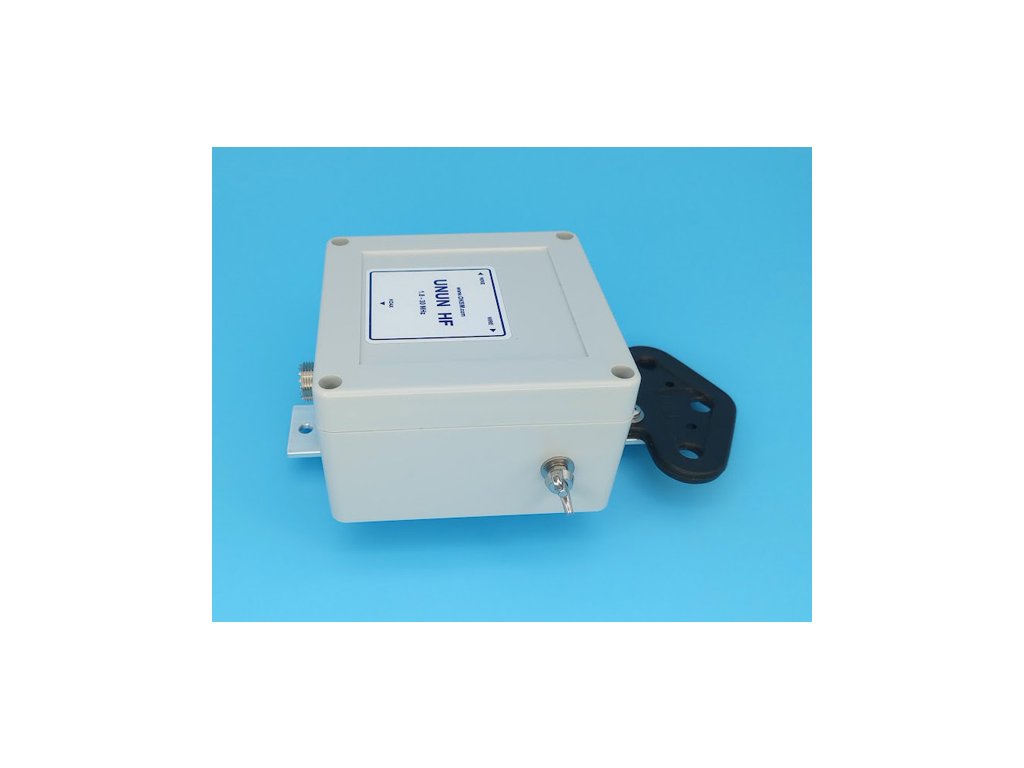

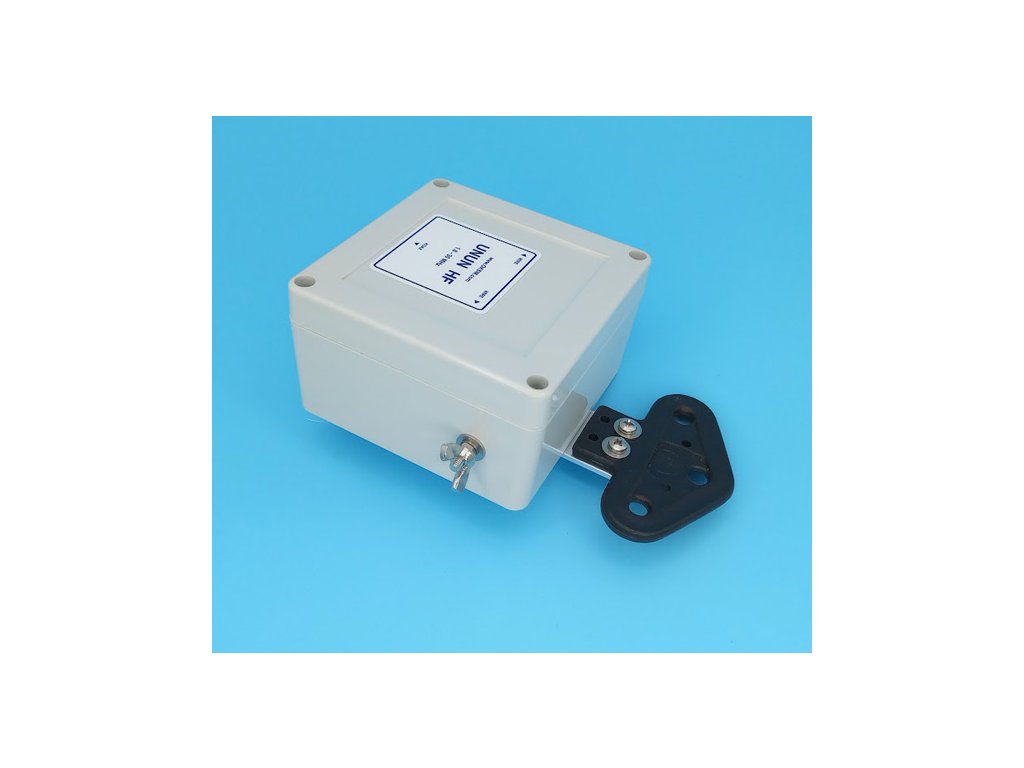

    - unun 1:6
    - 50 ohm coaxial cable feed
    - power load 2 kW PEP max (on digi, FT8 etc. max 700 W)
    - weight 1 kg (with CU-PVC wire)
    - hanging attachment
    - PL (UHF) connector
