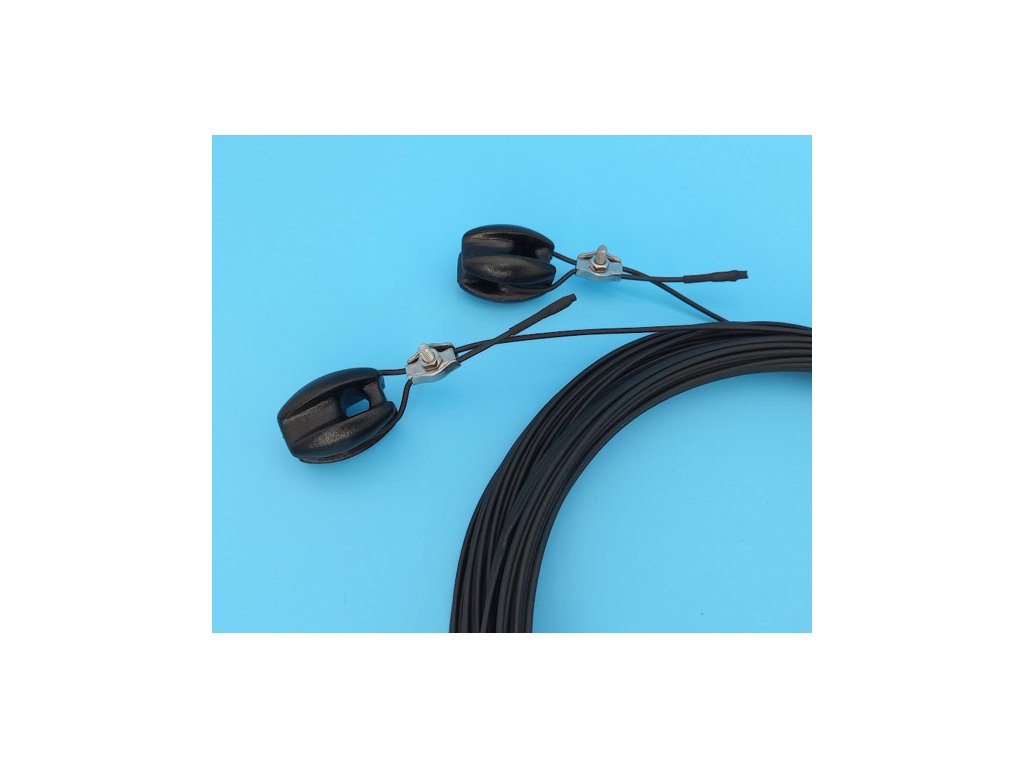

Dipole 14 LP
Code: 208/CU-2 208/CU-3 Choose variantProduct detailed description
Dipole for 14 MHz band. Version CLASSIC LP.
Mounting for hanging by balun.
Suspension by the ends of the arms only possible with the CU-HD version.
Specifications:
- 14 MHz band
- arm length approx. 2x5,2 m (factory 2x5.5 m, tuning by arm length)
- antenna wire according to variant - CU-PVC, CU-PE, CU-HD
- balun 1:1
- 50 ohm coaxial cable feed
- power load 300 W max (on digi, FT8 etc. max 100 W)
- weight 0,7 kg (with CU-PVC wire)
- attachment for hanging
- PL (UHF) connector
