Balun QRO

Code: 112/1-1 112/1-4 Choose variant
In stock In stock Choose variant

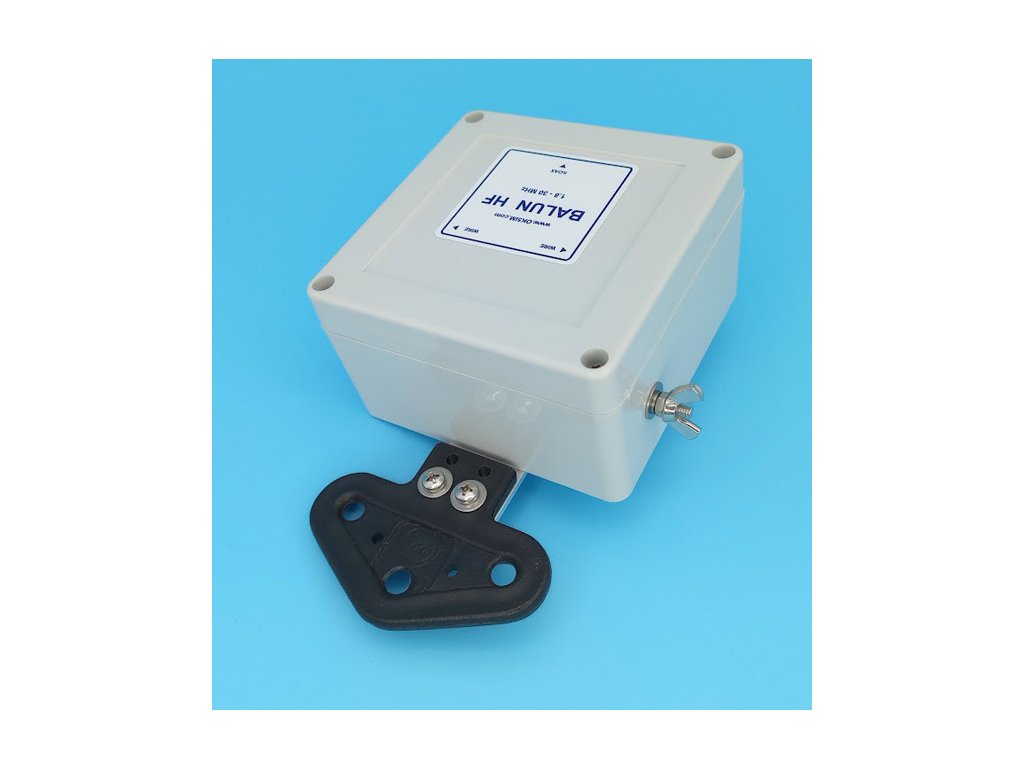

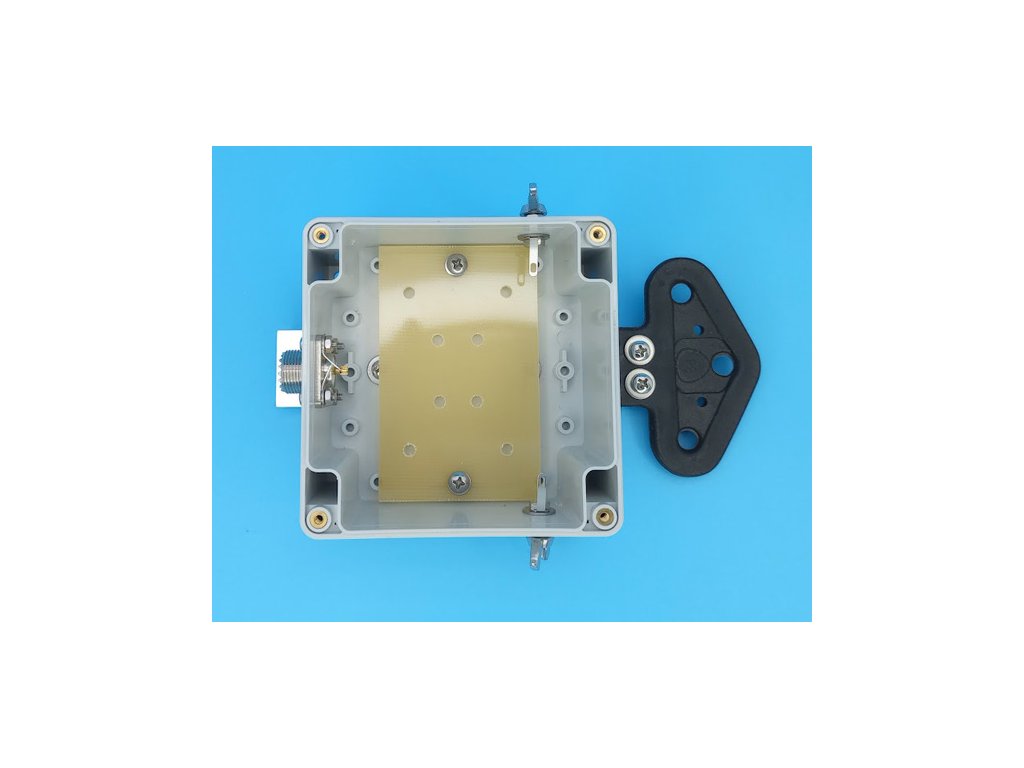

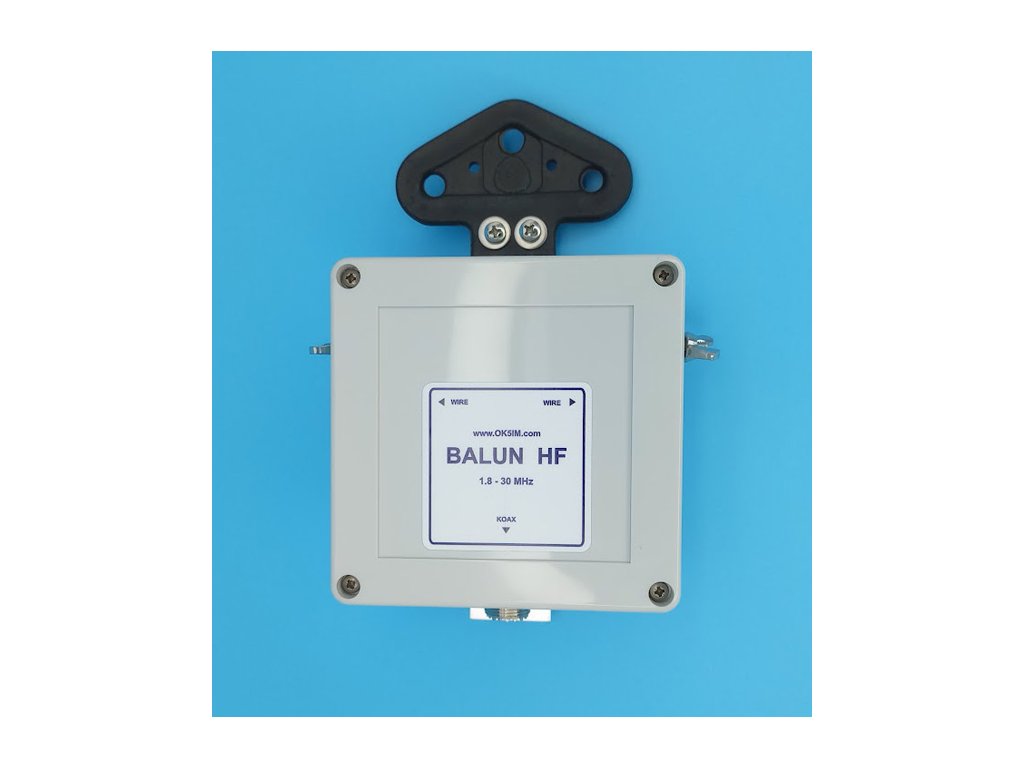

Balun CLASSIC. Suspension mounting, power load up to 2000 W PEP

Detailed information

Product detailed description

Balun version CLASSIC

Suitable for symmetrical resonant dipoles and vertical antennas

- impedance transformation ratio 1:1 or 1:4 depending on the selected variant.
- input impedance 50 Ohms
- Power load up to 2000 W PEP
- mechanical design for suspension by rope
- PL (UHF) input connector
- Antenna emitters are connected to M4 screws and secured with a wing nut
- fasteners are stainless steel
- box dimensions 105x105x55 mm
- weight 0,4 kg
