Balun MINI

Code: 91/1-1 91/1-4 Choose variant
€48
In stock In stock Choose variant
Variant

MINI balun, suitable for symmetrical resonant dipoles and vertical antennas

Detailed information

Product detailed description

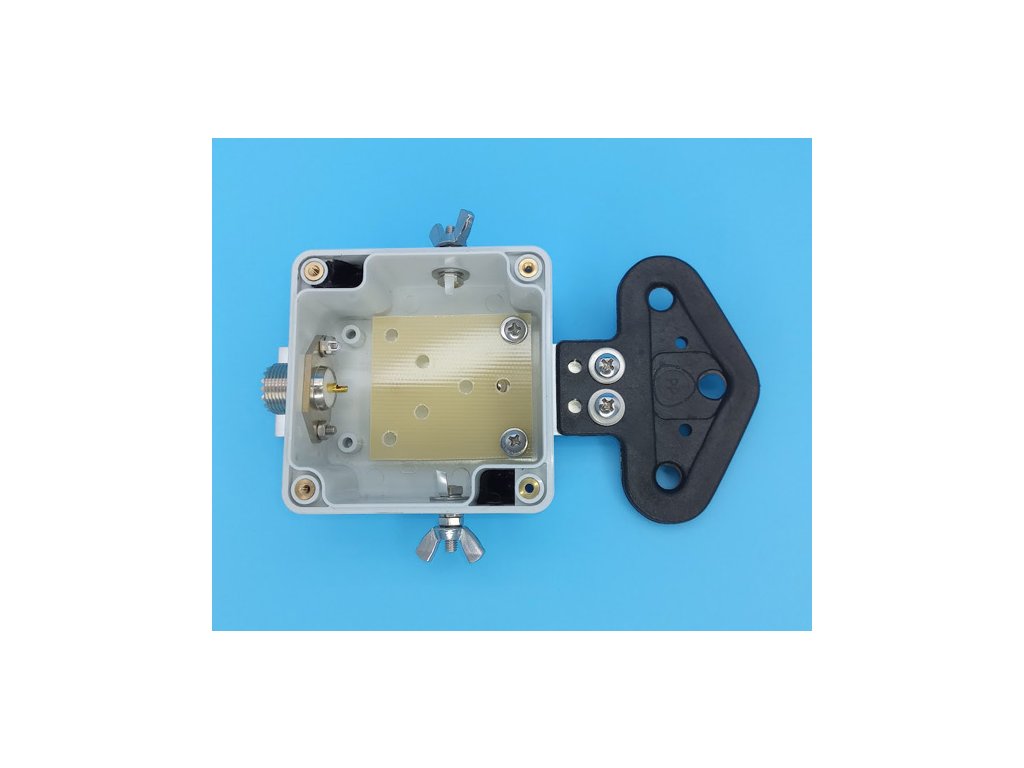

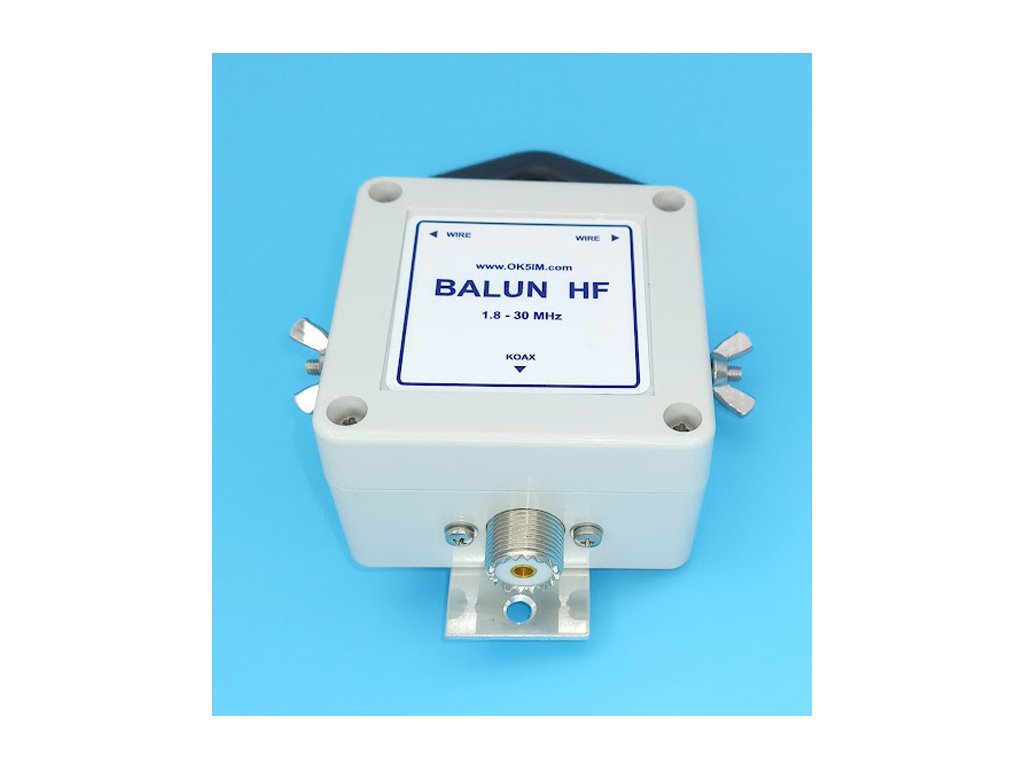

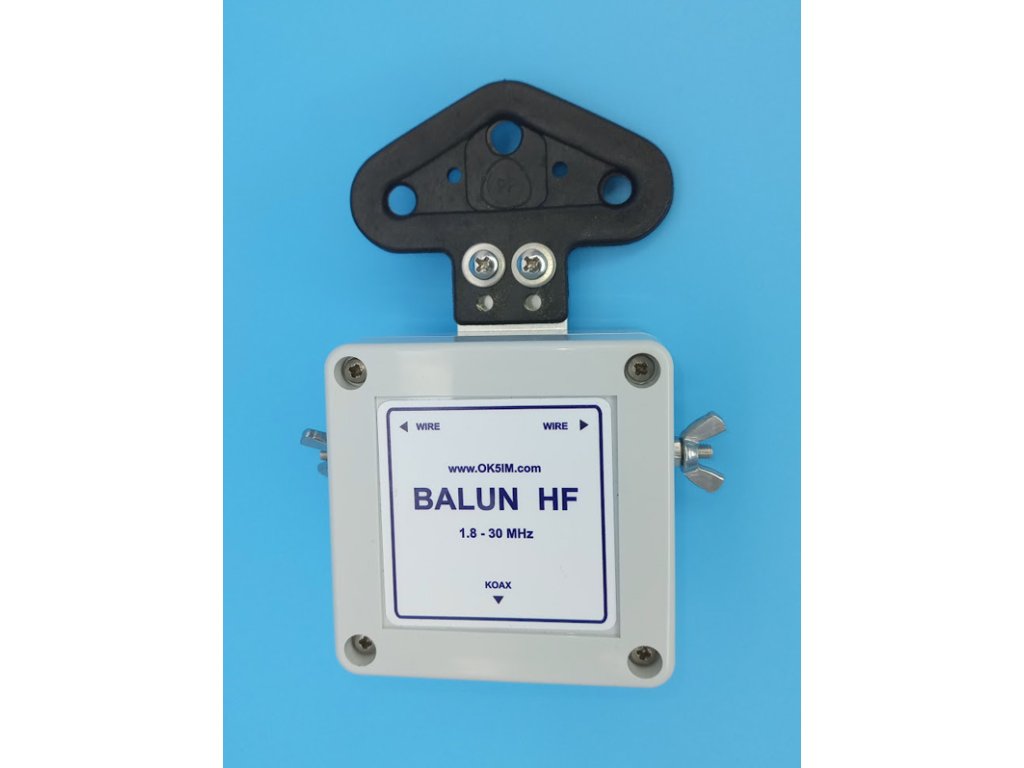

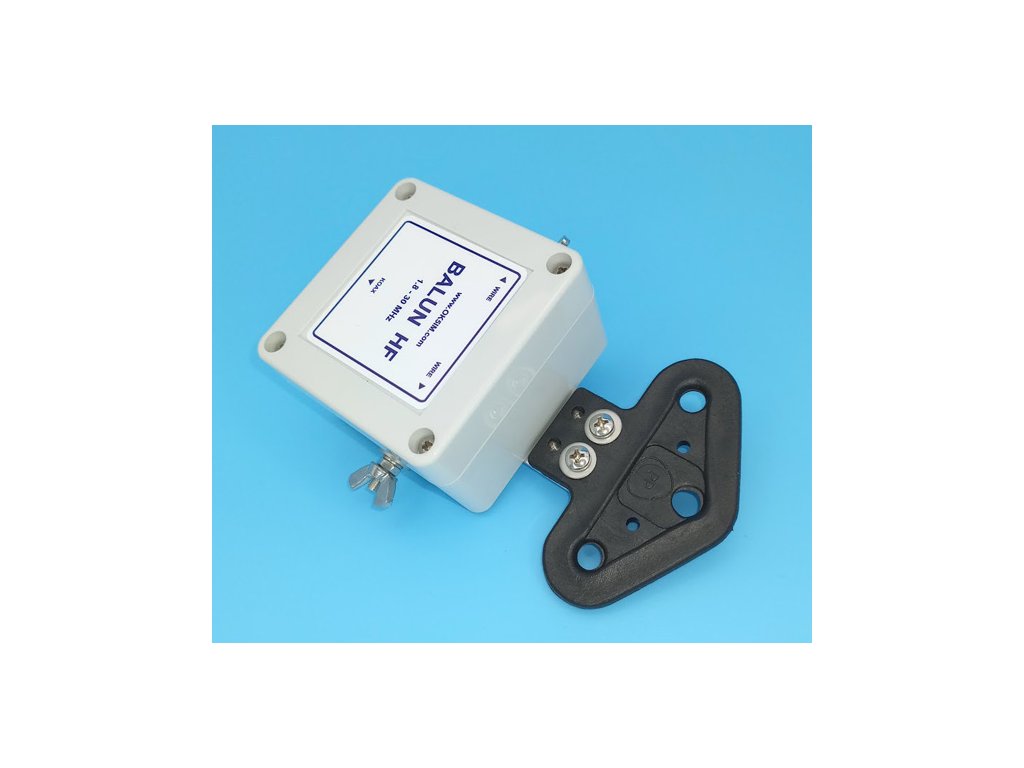

Balun version MINI

Balun suitable for symmetrical resonant dipoles and vertical antennas

Specifications:
- impedance transformation ratio 1:1 or 1:4 depending on the selected variant
- input impedance 50 Ohms
- power load up to 300 W (for digi, FT8 etc. 100W)
- mechanical design for hanging by rope
- PL (UHF) input connector
- antenna radiators are connected to M4 screws and secured with wing nut
- fasteners are stainless steel
- box size 80x60x40 mm
- weight 0,2 kg
