    Line Insulator MINI

    Code: 118
    lineinsulator mini 1
    €55
    In stock

    Line insulator MINI. Suppresses sheath currents when fed by coaxial cable.

    Detailed information

    Product detailed description

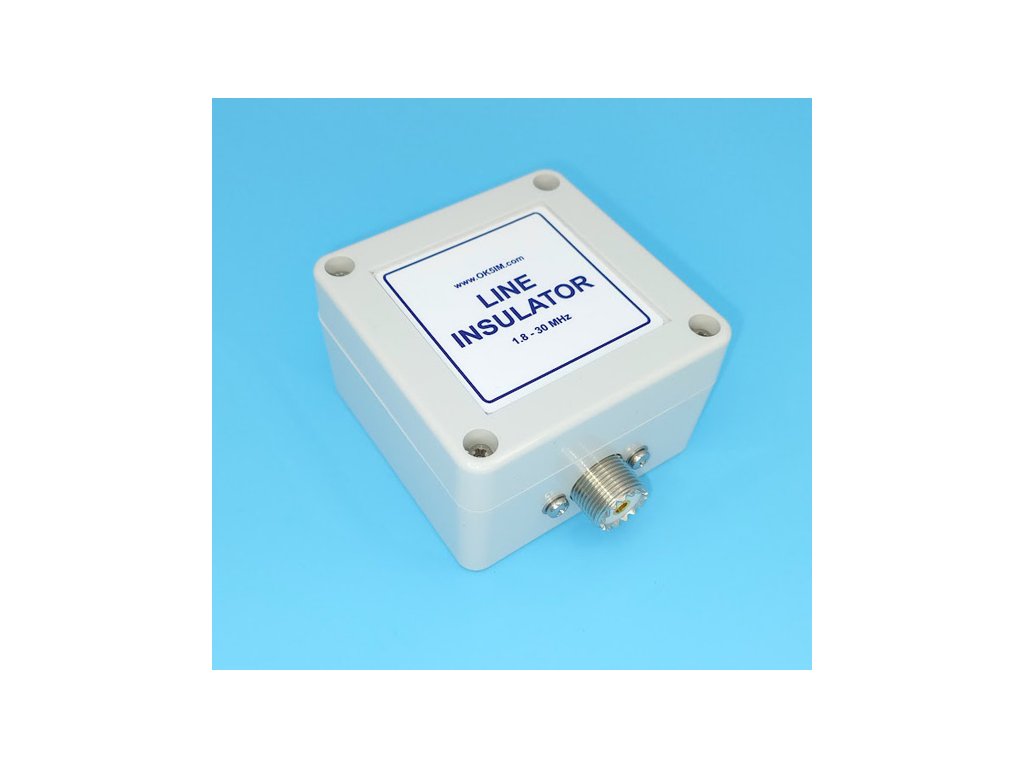

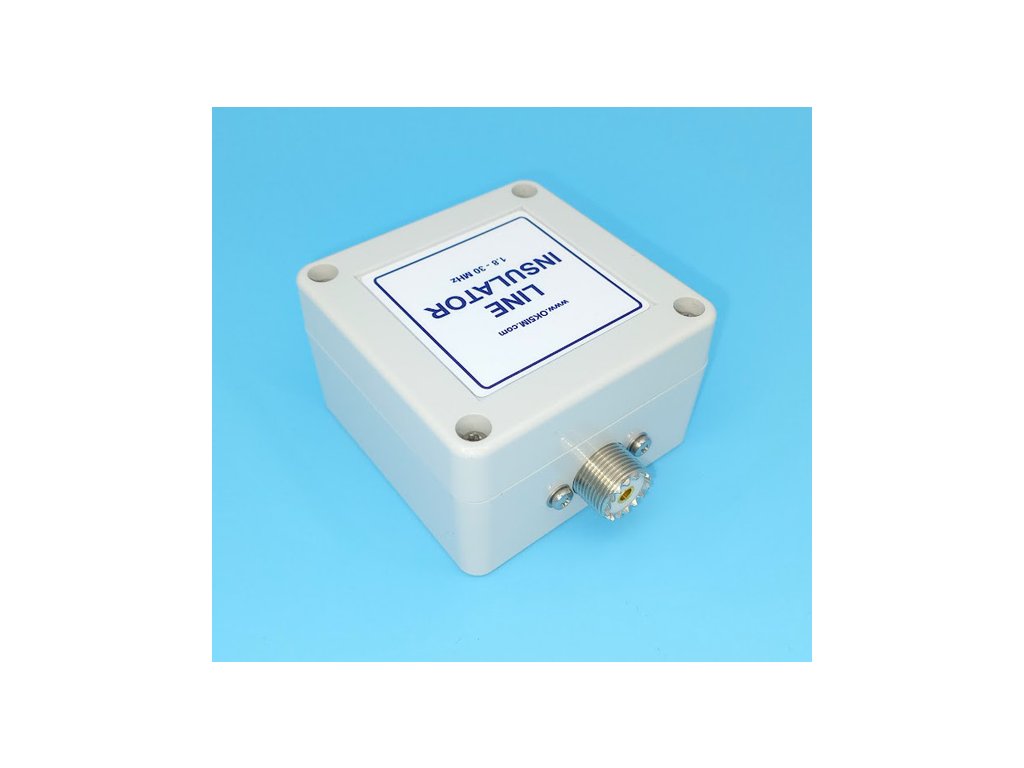

    Line insulator MINI version

    Suppresses sheath currents when fed by coaxial cable.
    Suitable e.g. for END-FED, Windom antennas or for connection to a coaxial feeder.

    Specifications:
    - power load 300 W (on digi, FT8 etc. 100 W)
    - impedance 50 Ohms
    - connected coaxial cable via PL (UHF) connectors
    - connecting material is stainless steel
    - box size 80x60x40 mm
    - weight 0,2 kg
